| Specification | |||||

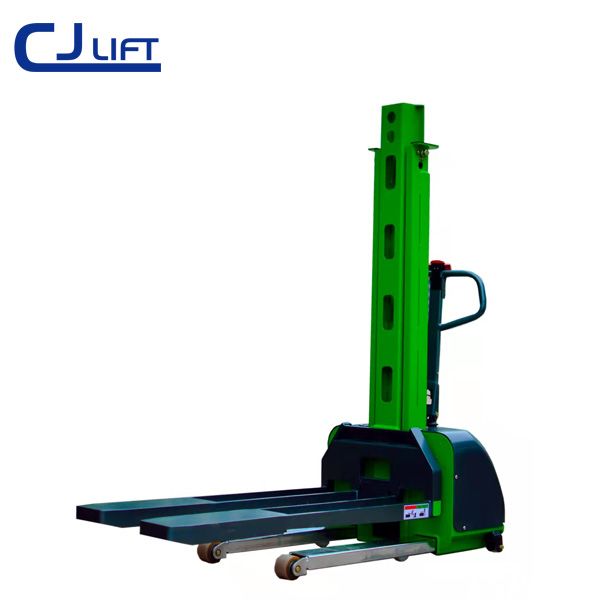

| 1 | Model | - | CJFES05 | ||
| 2 | Operation | - | All - Electric | ||
| 3 | Capacity | mm | 500 | ||
| 4 | Capacity Center | mm | 500 | ||
| 5 | Type of Operation | - | Walkie | ||
| 6 | Material of Wheel FR/RR | - | Super Polyurethane | ||
| 7 | No.of Wheel (Driving wheel/bearing wheel) |
- | 1/2/2 | ||
| 8 | Driving Wheel Size | mm | Φ250X74 | ||
| 9 | Bearing Wheel Size | mm | Φ80X60 | ||
| 10 | Max. Fork Height | H(mm) | 800/900/1000/1100/1200/1300 | ||
| 11 | Low Vehicle Height | H1(mm) | 1107/1207/1307/1407/1507/1607 | ||
| 12 | High Vehicle Height | H2(mm) | 2370/2470/2570/2670/2770/2870 | ||
| 13 | Min. Fork Height | H3(mm) | 81 | ||
| 14 | External Distance Between Forks | W3(mm) | 565/685 | ||
| 15 | Length of Fork | L2(mm) | 1195 | ||
| 16 | Overall Length | L1(mm) | 1676 | ||
| 17 | Width of Fork | B (mm) | 195 | ||
| 18 | Min. Turning Radius | Wa (mm) | 1147 | ||
| 19 | Maximum Speed | km/h | 0.5/3.0 | ||
| 20 | Climbing Grade | % | 5/10 | ||
| 21 | Battery Voltage/Capacity | V/Ah | 48/15 | ||
| 22 | Battery Weight | kg | 5 | ||
| 23 | Total Weight(Include Battery) | kg | 290/295/300/310/315/320 | ||
| 24 | Battery Charger | - | YES | ||
