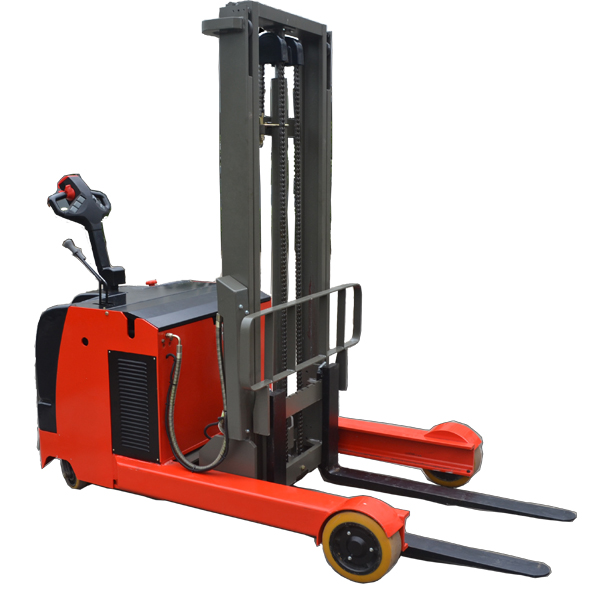

Stand on Small Reach Stacker Truck Factory

ASK FOR A QUOTE

Please enter your demands, our sales staff will offer you in 6 hours.

Product Description

Main Features:

1. Maintenance-free high-power AC drive system, providing reliable driving power;

2. Stand-on type with EPS, making the control more portable and flexible;

3. The standard CURTIS controller is reliable and durable.AMP waterproof and dustproof plug-in, which provides reliable protection for the circuit and greatly reduces electrical faults;

4. Platform type, pure electronic steering, integrated control handle, safe, labor-saving, flexible operation;

5. The newly designed floating suspension system makes the steering operation more flexible and convenient;

6. The frame is made of high strength steel plate frame structure, with large residual bearing capacity and long service life.

7. The shock absorption design is adopted for the standing and driving pedal, which greatly improves the riding comfort and reduces the fatigue of long-time driving;



Specifications:

Model



CJSRF15

CJSRF20

Power type



Battery

Battery

Operation type



Stand-on

Stand-on

Service weight(incl. battery)

kg

2100

2200

Rated capacity

Q(kg)

1500

2000

Load center

C(mm)

500

500

Lift height

h3(mm)

3000

3000

Fork dimension

l/e/s(mm)

1070/100/35

1070/100/40

Front overhang

x(mm)

130

130

Turning radius

Wa(mm)

1800

1985

Max. gradeability

%(tanθ )

6/8

6/8

Travelling speed laden/unladen

km/h

4/5.8

4/5.8

Lifting speed laden/unladen

mm/s

120/150

95/150

Lowering speed laden/unladen

mm/s

140/130

100/95
